VITALink® Coax Transit Fire Resistive Wireless Communications Cable

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

Transit Section VITALINK®-COAX-TRANSIT-FIRE-RESISTIVE-WIRELESS-COMMUNICATIONS-CABLE

Application :

Harsh Environment Telecom, Fire & Life Safety

Description:

VITALink® Coax cables are engineered to provide superior performance for ERCES (Emergency Responder Communications Enhancement System), ensuring critical communication remains intact during emergencies. ERCES enables seamless wireless radio communication for first responders in tunnels, subway stations, and other transit spaces where reliable connectivity is essential. In fire conditions, traditional cables can suffer from increased signal loss, leading to dangerous communication failures. VITALink® Coax, enhanced with Aircell® technology, minimizes signal degradation and maximizes performance under extreme heat, reducing the risk of outages that could jeopardize emergency response efforts. Additionally, its unique design eliminates the need for conduit, offering unmatched installation flexibility while significantly lowering overall installation costs. VITALink® Coax delivers a superior fire-rated cable solution that enhances reliability, performance, and safety when it matters most. (VT04)

  • Construction - Armor:

    Continuously welded copper shield

  • Construction - Bending Radius:

    8 in/203.2 mm

  • Construction - Fillers:

    Flame retardant braided rope

  • Construction Conductor:

    Solid bare corrugated copper conductor

  • Voltage:

    300

  • Temperature:

    60°C

  • Construction Jacket:

    Low Smoke red plenum jacket material

  • Feature 1:

    Fire Rated

  • Feature 2:

    Easy stripability

  • Feature 3:

    Available in long lengths

  • Feature 4:

    CCW Armor

  • Feature 5:

    Maintains connectivity without signal degradation

  • CSA_Listings:

    CSA 22.2/FT6

  • CSA Listings:

    CSA 22.2/FT6

  • UL Listings:

    UL-2196 and ULC-S139

Performance Standards

  • Type CMP • Type 444 • Rated for 50 Ohm • NFPA 130 • NFPA 70 Standard, Article 810 • NFPA 72 and NFPA 130 Standards • NFPA 262 CMP

Core Specifications

  • Voltage:

    300
  • Temperature:

    60°C

Related Products

American Connectors - Metal- Clad Cable Connectors

American Connectors - Metal- Clad Cable Connectors

The Connectors are Custom Fit to the Outer Diameter of the Armor. Optional Materials by Request: Stainless Steel, Nickel-Plated Brass

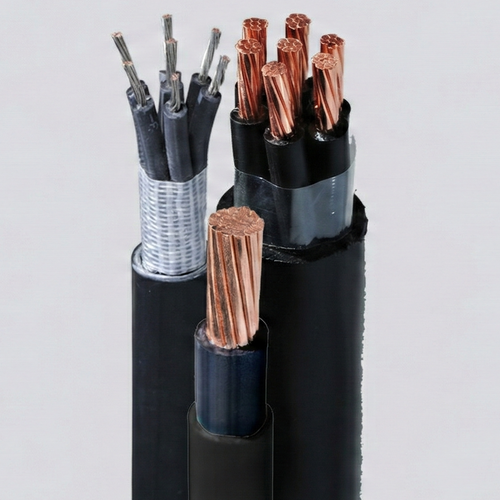

Tray Cables

Tray Cables

Tray cables encompass TC-ER rated products, typically 600V or 1000V power cables in single- or multi-conductor formats, often with FT4 or FT4-ST1 flame ratings for low-smoke options.
RW90 LSZH

RW90 LSZH

RW90 LSZH cables are available in 600V or 1000V ratings, in single- or multi-conductor configurations with various sizes. They feature cross-linked polyethylene (XLPE) insulation rated for 90°C wet or dry operation, combined with low smoke zero halogen jacketing and FT4-ST1 plus TC-ER ratings.
ACIC

ACIC

ACIC (Armored Control and Instrumentation Cable) is rated at 300V and commonly features shielded pairs or triads (e.g., 18 AWG tinned copper conductors). It is designed for reliable signal transmission in electrically noisy environments.
Teck LSZH (Ft4-ST1)

Teck LSZH (Ft4-ST1)

Teck LSZH cables are armored power cables rated at 1000V, available in multi-conductor configurations. They feature low smoke zero halogen jackets and meet stringent FT4-ST1 flame and smoke requirements.
Traction PowerCables

Traction PowerCables

Traction power cables are specialized single-conductor cables rated at 2000V, designed for railway and transit applications. These cables comply with CSA FT4-ST1 and TC-ER ratings, allowing exposed runs and installation in cable trays per Canadian Electrical Code requirements.

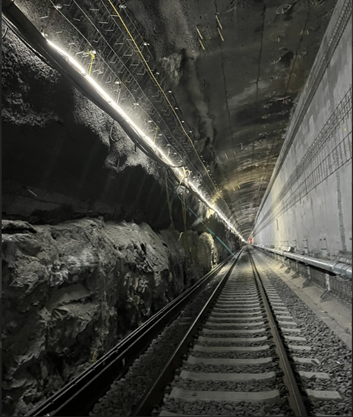

X-Glo LED Strip Lighting

X-Glo LED Strip Lighting

Temporary lighting for tunnels and many other applications. A lighting system that supports visual perception and consistent light levels. Ease of installation and overall cost savings.
RTX Tunnel Linear - Direct-AC LED Luminaire

RTX Tunnel Linear - Direct-AC LED Luminaire

The RTX is a heavy duty, harsh environment luminaire designed for rail and tunnel applications. Its 1? low-profile design enables RTX to be mounted to the tunnel wall using quick latch hangars or via snake rack and keeps the fixture out of the dynamic envelope. Push-and-click connectors make installation easy to terminate to any wiring box used in today’s tunnel environment. The innovative driverless technology is EMI-silent and connects directly to AC line voltage, providing extreme reliability and zero maintenance.

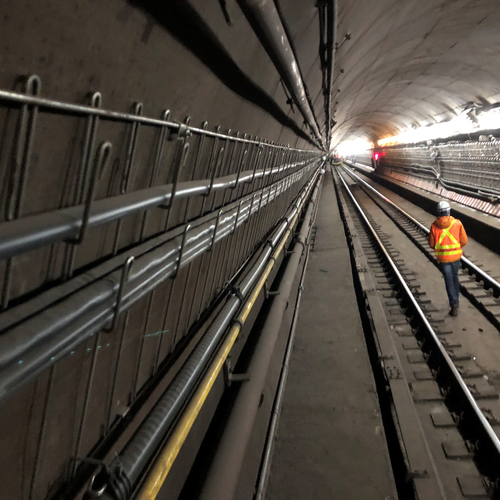

SNAKE TRAY CABLE MANAGEMENT
