2-Hour Fire Rated

Power Cable

When you need the absolute best.

ULC - 2 hour fire rating
Fast and easy installation and termination
Horizontal and vertical installations

VITALink® RC90 is a self-contained 2-hour fire rated cable system that offers cost, reliability and ease of installation advantages over other methods of providing Fire Rated Circuits.

It is CSA Listed as Type RC90 and Certified to ULC S139 “Tests for Fire Resistive Cables”. This cable system meets* the code requirements for 2 hour Fire Rated Circuits, Electrical Circuit Protective Systems, Survivability or Circuit Integrity as applicable. We equally have Canadian approval for the FHIT7 120A and FHIT7 60 & 60A. This cable meets the National Building Code of Canada's section 3.2.7.10 requirements and is compliant with the Canadian Electrical code.VIEW FULL SPECS

PRODUCT BROCHURE   INSTALLATION MANUAL

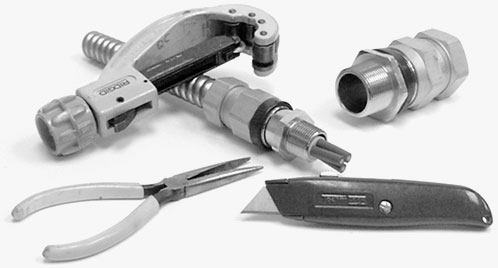

Specifically designed, easy to use hardware
The equipment grounding copper sheath is terminated with a readily available brass connector (multiple sources) and the cable connections are made without the need for splicing or special tools. When compared to Mineral Insulated (MI) cable, VITALink RC90 is not exposed to costly field expenses in preparing cable ends, special panel penetrations, additional flexible terminations and the splicing of shorter lengths in longer runs. VITALink RC90 is not susceptible to voltage failures caused by moisture ingress through leaky seals or faulty storage.

The right choice for the required protection
Alternate methods such as installation in isolated service spaces, most of the time, is and expensive and inefficient solution. It must be remembered that service spaces do not test the electrical capability of the circuit during or after a fire but only the structural ability to prevent fire spread.
