RC90 Transit
2-Hour Fire Rated Power Cable

VitaLink

Certified for Canadian Infrastructures

2-Hour fire resistive cables
Low smoke-zero halogen (FT4-ST1)
Armoured and -40°C to 90°C options


VITALink® RC90 is a 600V 2-hour fire rated cable listed to ULC S139 with hose stream. It is specifically designed to meet both the electrical and fire-resistive cable requirements of NFPA 130 and NFPA 502 for Emergency Communications, Emergency Lighting & Emergency Ventilation. When installed per system FHIT7 120 and the CEC, VITALink RC90 meets code requirements for 2 hour Fire Rated Circuits, Electrical Circuit Integrity Systems, Survivability and Circuit Integrity. We equally have Canadian approval for the FHIT7 120A/120/60A/60.
VIEW FULL SPECS  PRODUCT BROCHURE

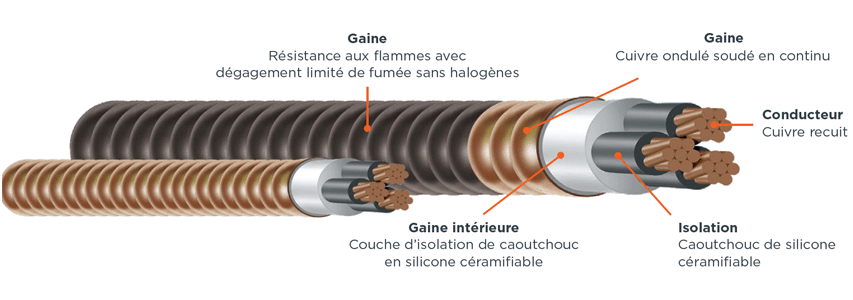

Cable Shot
NFPA 130/502, CSA 22.1
ULC S139 with Hose
600 Volt, 90°C
CEC Type RC90, System FHIT7 120/120A/60/60A


How it's made. What it's for.

VITALink RC90 Cables offer lowered cost, reliability and ease of installation advantages over MI cable and other methods of providing Fire Rated Circuits.



The equipment grounding copper armor is terminated with commercially available brass MC/RC connectors and the cable connections are made without the need for splicing or use of special tools. Compared to Mineral Insulated (MI) cable.



VITALink RC90 is not exposed to costly field expenses in preparing cable ends, special panel penetrations, additional flexible terminations, and the splicing of shorter lengths in longer runs. VITALink RC90 is not susceptible to failures caused by moisture ingress through leaky seals or faulty storage.

Features
  • 2-Hour fire resistance
  • Splice available
  • Superior resistance to flame propagation
  • Only conventional tools required to terminate
  • Commercially available brass/stainless steel connectors
  • Printed number coding allows for easy identification (ICEA Method 4)
  • Labor savings on termination, installation, and handling
  • Superior impact & crush resistance (hazardous locations)
  • Low smoke, low toxicity, halogen free design
  • Metal sheath forms an impervious barrier
  • Metal sheathing for equipment grounding
  • Sunlight Resistant
  • 90°C for Wet Locations
  • Flexible
  • Long continuous lengths available
  • Multiple sizes and conductor counts available
  • VFD cable design available

Applications
  • NFPA 130, NFPA 502
  • Lighting, Ventilation, Communications
Performance Standards
  • NFPA 130 - Chapter 12 - exceeds fire resistive requirements
  • NFPA 502 - Chapter 12 - exceeds fire resistive requirements
  • ULC S139 - Listed as 2-hour fire rated with Hose Stream
  • FHIT7 120A/120/60A/60 of the ULC Fire Resistance Directory
  • IEEE 1202/FT4 vertical flame test; ST1 limited smoke
  • CSA 22.2 No 123 - cUL Listed as Type RC90
  • CSA 22.1 Article 12-700
  • Copper sheath can be used for equipment bonding exceeding CEC Rule 10-618 and 10-804
  • Copper Conductors to ASTM B8
